产品展示
Production and sales of drones, covering multiple fields such as military, agricultural, surveying, and disaster relief.

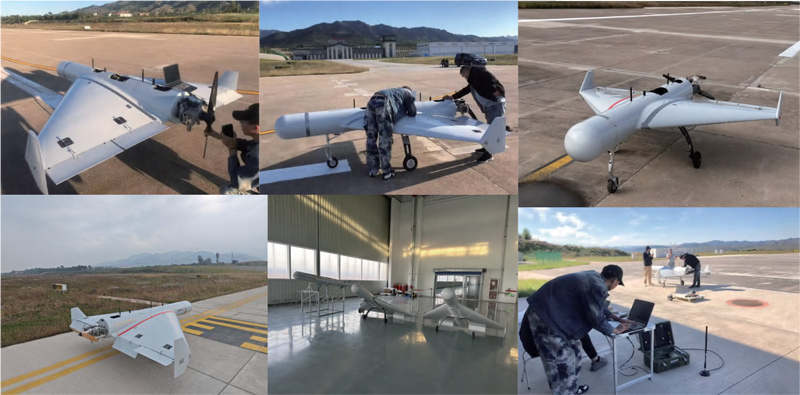

Sunflower200 Long Distance Smart Patrol Drone
|
Wingspan |
2.67m |
|
Length |
3.2m |
|
Payload |
50kg |
|
Combat radius |
1000~1500km |
|
Flight speed |
120~200km/h |
|
Flying time |
10hours |
|
Flight altitude |
5000m |
|
Fuel tank capacity |
100L |
|
Take-off mode |
Landing gear and launcher |
|
MTOW |
190kg |
Take off by Undercarriage or Rocket Booster
Landing by Undercarriage

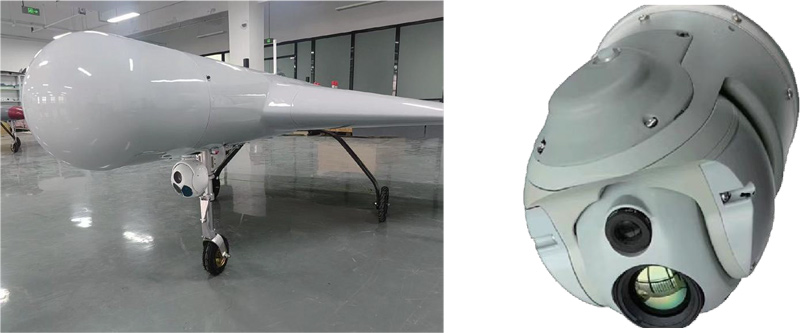

AI Thermal &Visible Seeker

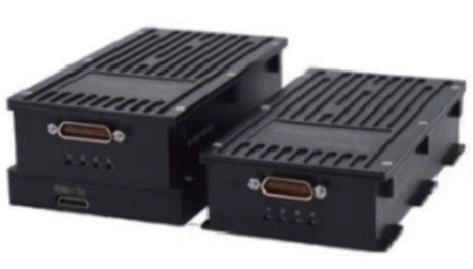

8G Video+Data Link
|
8GB video+data link |
|
|
Interface |
21-core J30 interface: |
|
RF interface SMA-K (MESH) |
|
|
Indicator Lights |
4-level network quality indication |
|
Wireless specifications |
7900~8000Mhz |
|
Output Power |
33dBm |
|
Receiving sensitivity |
-100dBm |
|
Channel bandwidth |
1.25MHz/2.5MHz/5MHz/10MHz |
|
Performance Parameters |
|
|
Networking |
Ad Hoc Network |
|
Anti-interference |
Intelligent frequency selection; optional fast frequency hopping (1000 hops/second) |
|
Peak rate |
25Mbps |
|
Relay hop count |
More than 10 hops, single hop delay < 10ms |
|
Number of nodes |
32; 64/128 nodes optional |
|
Start Time |
<35s |
|
Transmission encayption |
AES 256 |
|
Hardware Parameters |
|
|
Dimension |
200*80*70mm |
|
Weight |
1.2KG |
|
Antenna |
Aircraft standard 2dBi omnidirectional fiberglass antenna |
|
Standard 5dBi omnidirectional fiberglass antenna on the ground |
|
|
power supply |
DC 28V; Optional DC 12V |
|
Power consumption |
Peak 30W |
|
Operating temperature |
(-40°℃ to 65°℃) |
|
Working humidity |
10% to 90% non-condensing |
|
Installaton |
Airbome |
