Production and sales of drones, covering multiple fields such as military, agricultural, surveying, and disaster relief.

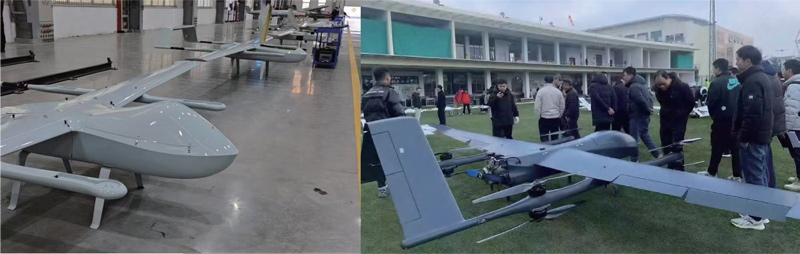

S1800 Reconnaissance & Strike VTOL Drone
|
Length |
3970mm |
|
Wingspan |
7336mm |
|
Fuselage height |
1443mm |
|
Maximum take-off weight |
180kg |
|
Maximum payload |
60kg |
|
Endurance |
8h@40kg(payload)，4h@60kg(payload) |
|
Full-load fuel consumption |
Cruise stage:4.5L/h, high-power stage:6.5L/h |
|
Flight radius |
400km（Depends on the fuel load） |
|
Max speed |
50m/s |
|
Cruising speed |
38m/s |
|
Stall speed |
28m/s |
|
Max fuel load |
55L |
|
Ceiling |
3500m@290CC engine; 5500m@390CC engine |
|
Max wind resistance |
12m/s（6 leve） |
|
Use envirment |
-20-+50℃; against light rain |
|
Engine |
B2G290（Electronic fuel injection inspired intergration），32*16(Tail propeller blade) B2G390（Electronic fuel injection inspired intergration），36*14(Tail propeller blade) |
|
Lift/drop power battery |
24S1P-12000mAh* Lithium battery, parallel, single weight 6.9kg |
|
Take-off and landing mode |
Vertical take-off and landing |
|
GPS positioning system |
RTK Double antenna |
|
Shipping dimension |
3200*1800*1300mm |
