MAX30K Firefighting Drone

The fire-fighting drone can carry water guns, dry powder fire-fighting bombs, small buckets, etc. to perform fire-fighting operations. The load is ≥30kg, the number of casting points is ≥2, and the operating temperature is ≥150℃. The maximum no-load flight time is ≥35min, the load is 30kg, the flight time is ≥12min, and the control distance of the remote controller is ≥2km; the module supports quick-plug and quick-change casting, supports three-stage casting, and the total casting weight is 30kg.

X30 firefighting drone platform 30kg load, under-hook load, multi-functional application, foldable and portable M30 is made of carbon fiber, nylon fiber and aluminum alloy materials to form a modular design structure, which is sturdy and durable.

Specifications

Wheelbase	1860mm

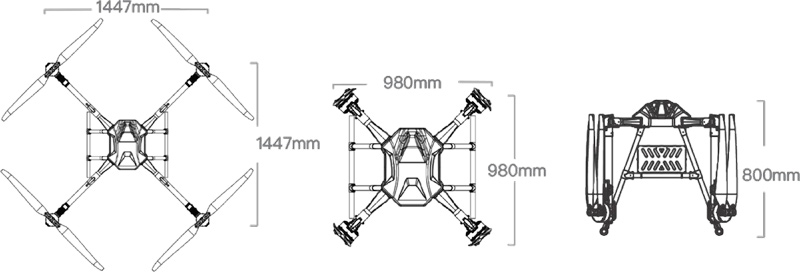

Expanded size	1447x1447x800mm
Folded size	980x980x800mm
Weight	22.4kg(w/o battery)
Payload	30kg
MTOW	84kg
Flight control	Industrial flight control system
Ascent speed	5m/s
Flight speed	8-15m/s
No-load flight time	60min
Full-load flight time	20min
Operating voltage	58.8V（s）
Battery capacity	66000mAh*2
Material	Carbon fiber, Nylon, Aluminum alloy

size parameter

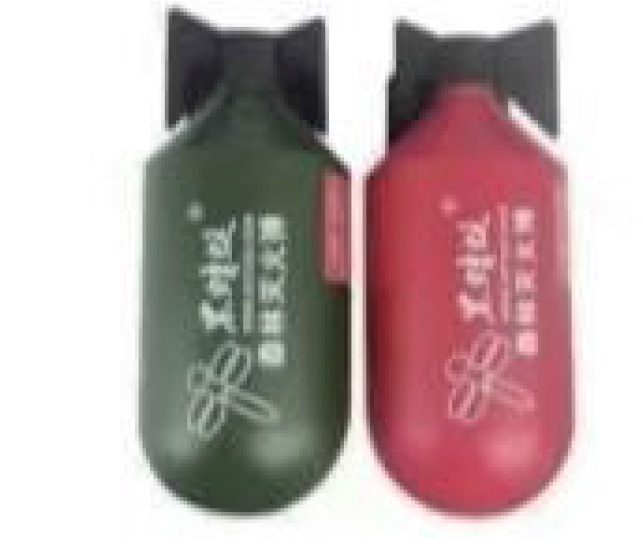

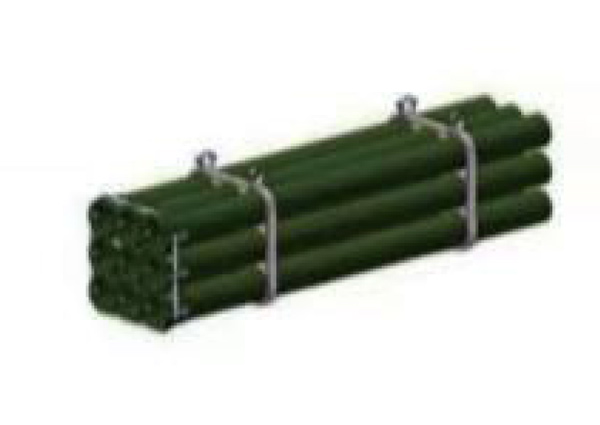

Drop fire bombs	Broken window fire bomb

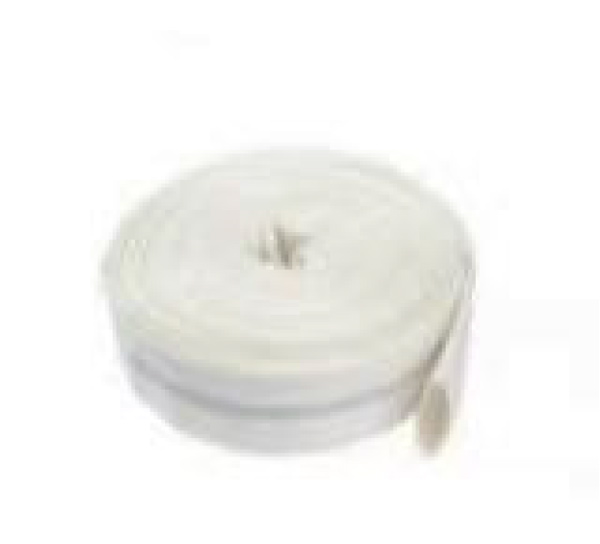

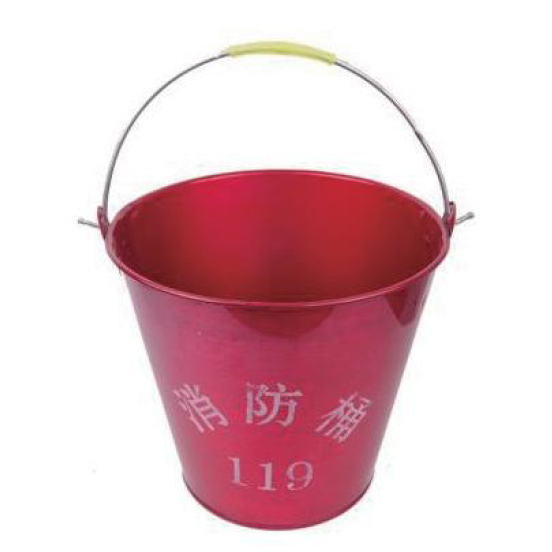

Fire nozzle	Fire bucket
