Products
产品展示
Production and sales of drones, covering multiple fields such as military, agricultural, surveying, and disaster relief.

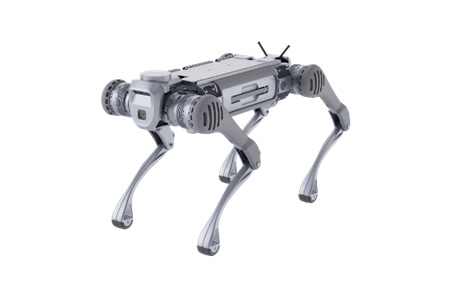

Navigation B6 quadruped robot
1. Length, width, and height (when standing) are approximately 1098mm * 450mm * 645mm
2. The maximum joint torque is greater than 360 N * m
3. Maximum movement speed ≥ 2.5m/s
4. Maximum climbing angle 45 °
5. The maximum width of the maximum jump trench under standard configuration is ≥ 0.4m
6. Load capacity ≥ 40kg during continuous walking
7. Up and down 40cm steps in a forward direction
8. Conventional stairs (with a step height of 16cm) can climb up to 15 steps every 5 seconds, allowing for 360 ° omnidirectional turns on this specification of stairs
9. Built in multiple sets of Intel Realsense cameras
10. External interfaces: 4 1000M Base Ethernet; 4 USB 3.0 ports; 4 12V; 1 5V; 4 24V; 1 BAT
11. Support tool free quick rotation of the robotic dog tail camera, with a single rotation time of ≤ 5 seconds
12. The robot dog body and battery should adopt a split design (provide proof materials), supporting quick battery replacement without tool assistance. The time required for a single battery replacement is ≤ 2 seconds, and the machine dog can be started without connecting cables after replacement
13. The protection level of the robotic dog body shall not be lower than IP67
2. The maximum joint torque is greater than 360 N * m
3. Maximum movement speed ≥ 2.5m/s
4. Maximum climbing angle 45 °
5. The maximum width of the maximum jump trench under standard configuration is ≥ 0.4m
6. Load capacity ≥ 40kg during continuous walking
7. Up and down 40cm steps in a forward direction
8. Conventional stairs (with a step height of 16cm) can climb up to 15 steps every 5 seconds, allowing for 360 ° omnidirectional turns on this specification of stairs
9. Built in multiple sets of Intel Realsense cameras
10. External interfaces: 4 1000M Base Ethernet; 4 USB 3.0 ports; 4 12V; 1 5V; 4 24V; 1 BAT
11. Support tool free quick rotation of the robotic dog tail camera, with a single rotation time of ≤ 5 seconds
12. The robot dog body and battery should adopt a split design (provide proof materials), supporting quick battery replacement without tool assistance. The time required for a single battery replacement is ≤ 2 seconds, and the machine dog can be started without connecting cables after replacement
13. The protection level of the robotic dog body shall not be lower than IP67
