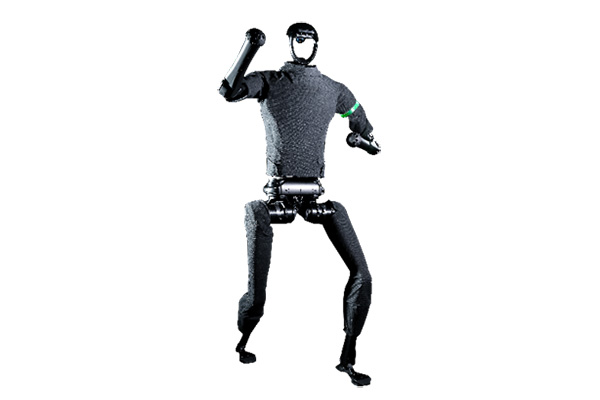

Navigation H2 Universal Humanoid Robot Body
1. The total weight of the machine (with battery) is about 50kg
2. When standing, the dimensions are approximately 1700mm * 570mm * 220mm
3. Key dimensions: thigh length 400mm; calf length 400mm; total arm length 338mm
4. Single leg degree of freedom: 5 (3 degrees of freedom for hip joint+1 degree of freedom for knee joint+1 degree of freedom for ankle joint)
5. Single arm degree of freedom: 4;
6. Maximum movement speed ≥ 1.5m/s
7. Can carry a 30kg load while walking
8. The robot body and battery should adopt a split design, supporting quick replacement of batteries without tool assistance, with a single replacement time of ≤ 5 seconds, and the robot can be started without connecting cables after replacement
9. All joint modules of the robot have an outer diameter of ≤ 130mm
10. The waist of the robot adopts a quick detachable structure, which can quickly remove the legs
11. Control and Sensing Computing Power: Multiple Intel Core i7-1265U
12. Configure Intel RealSense depth camera
13. Configure MID-360 3D LiDAR
