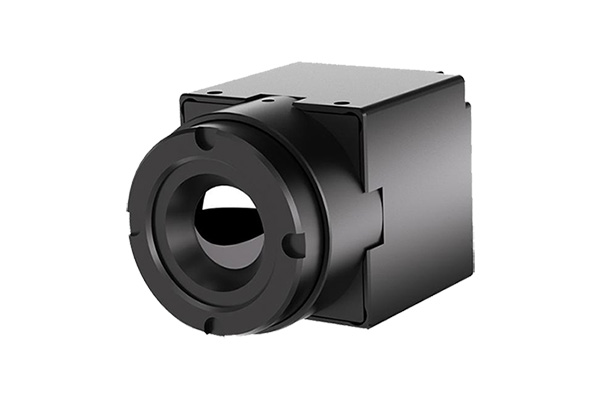

AC Series

AC series is a small thermal imaging module, the use of the second generation of "Falcon" chip, with high refresh rate detector, the use of no block algorithm, smooth screen, with small size, strong performance, light weight, low power consumption characteristics, with the new generation of infrared special algorithm, the picture quality is clear, and it can be used in fire rescue, animal protection, security monitoring, environmental monitoring, industrial testing and other fields.
Product Parameters:
Lens Size: 9mm
Resolution: 256x192 / 384x288 / 640x512
Pixel Pitch: 12 micrometers (µm)
NETD: ≤40 millikelvin (mK)
Frame Rate: 50Hz
Color Palette: White Hot, Black Hot, etc.
Focus Adjustment: Focusable
Video Standard: PAL
Output Type: CVBS
Power Supply Voltage: 4.5 - 18V
Operating Temperature: -40°C to +80°C
Storage Temperature: -50°C to +85°C
