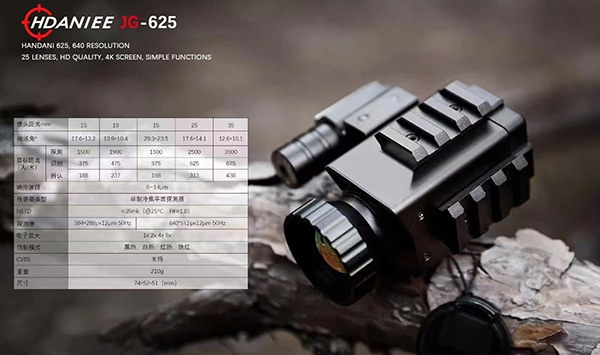

Diamond series
| Lens focal length Millimeter | 15 | 19 | 15 | 25 | 35 | |
| Field of view angle ° | 17.6*13.2 | 13.9*10.4 | 29.3*23.5 | 17.6*14.1 | 12.6*10.1 | |
| Target distance (people/Ric e) | Survey | 1500 | 1900 | 1500 | 2500 | 3500 |
| Identify | 375 | 475 | 375 | 625 | 875 | |
| Identify | 188 | 237 | 188 | 313 | 438 | |
| Response band | 8~14 μm | |||||
| Sensor type | Non-refrigerated focal plane detector | |||||
| NETD | < 35 mk ( @25° C, F# = 1.0) | |||||
| Detector | 384*288px 12 μm 50 Hz | 640*512px 12 μm50 Hz | ||||
| Electronic amplification | ×1，×2，×4，×8 | |||||

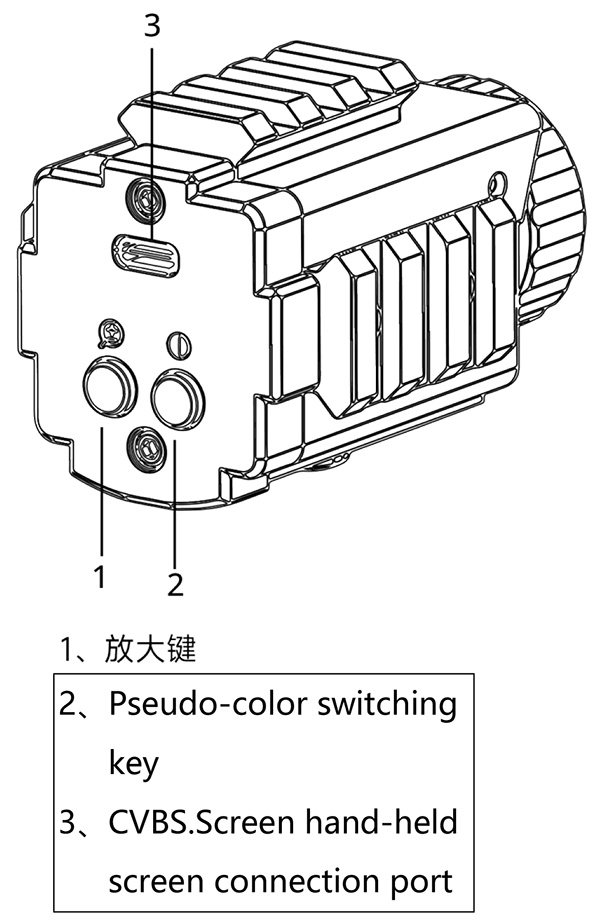

| Pseudo-color mode | Black heat, white heat, red heat, iron red | |||||

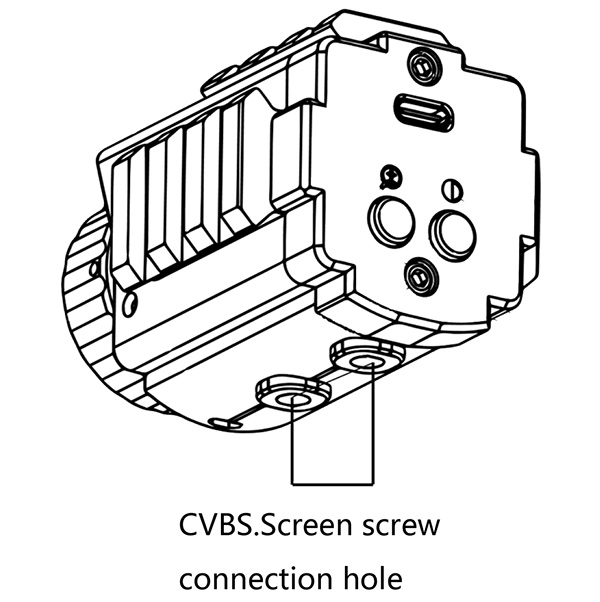

| CVBS | Hold out | |||||
| Weight | 210g | |||||
| Measurement | 74*52*51(mm) | |||||
