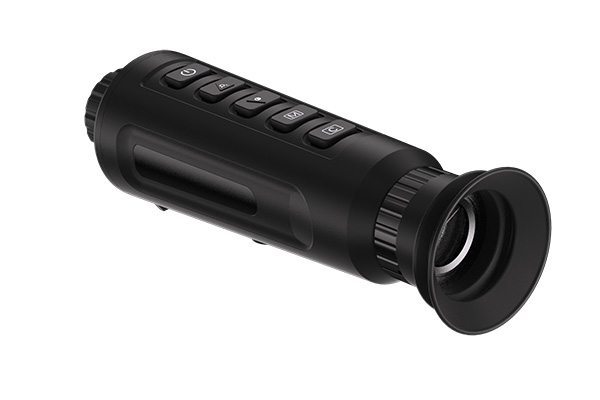

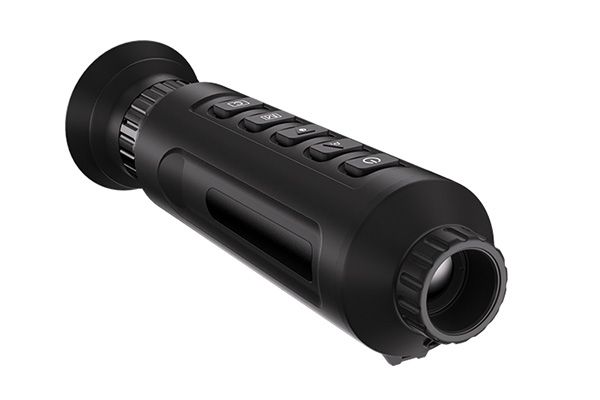

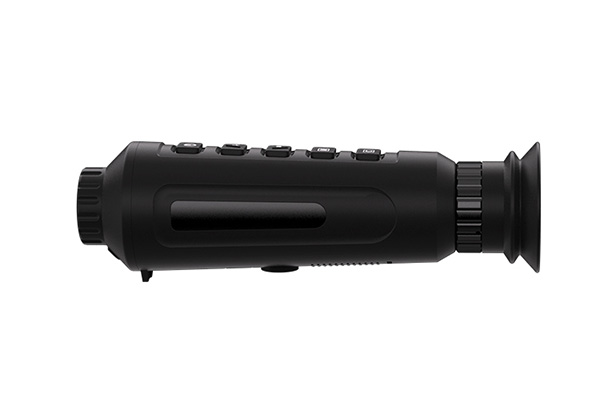

CE2 Series Portable Thermallmaging Monocular




About this manual
This manual is used as a guide. Photographs, graphs, charts and illustrations provided in the manual are for explanation and illustration purposes only, and may differ from the specific product, so please refer to the actual product. Due to product version upgrade or other needs, we may update this manual, if you need the latest version of the manual, please contact us.
We recommend that you use this manual under the guidance of a professional.
Disclaimer of Liability
To the fullest extent permitted by law, the products described in this manual (including their hardware, software, firmware, etc.) are provided "as is" and may contain defects, errors, or failures, and the Company disclaims all warranties of any kind, either express or implied, including, but not limited to, warranties of merchantability, satisfaction of quality, fitness for a particular purpose, non-infringement of third party rights, etc.; nor does it make any warranty of any kind with respect to the use of the products. We do not provide any warranty of any kind, either express or implied, including but not limited to warranties of merchantability, satisfactory quality, fitness for a particular purpose, non-infringement of third party rights, etc., and we will not indemnify you for any special, incidental, occasional, or consequential damages resulting from the use of this manual or the use of our products, including but not limited to, loss of business profits or loss of data or files.
If you access the product to the Internet at your own risk, including but not limited to the product may be subject to network attacks, hacking, virus infection, etc., the Company will not be responsible for the resulting product work abnormality, information leakage and other issues, but the Company will provide you with product-related technology suppport in a timely manner. When you use this product, please strictly comply with applicable laws. If this product is used to violate the rights of a third party or for other improper purposes, the Company shall not be liable. In case of conflict between the contents of this manual and the applicable laws, the laws shall prevail.
CE-2 Series Specification
specification
model CE-210 CE-215
Lens Lens (Focal Length) 10mm 15mm
Field of View 17.6*13.2 11.7*8.8
Target Distance(person) exploration 1100m 1550m
recognize 280m 405m
recognize 150m 203m
Detector Response Waveband 8~14 μm
Detector Type Vanadium Oxide Uncooled Focal Plane Arrays
NETD < 35 mk ( @25° C, F# = 1.0)
Resolution 256*192
Refresh Rate 50 fps
Pixel Interval 12 μm
image display display resolution 800*600
Monitor OLED 0.32
luminance 1-5 adjustable gears
contrast ratio 1-5 adjustable gears
AI resolution enhancement support
Digital Zoom ×1,×2,×4,×8
Palettes Black heat, white heat, red heat, iron red, bird watching, sky
Scene Mode Birding, general, urban, forest, rainforest, ditchside
Non-uniformity correction support
Digital Filtering and Noise Reduction support
FFC (Flat Field Correction) Auto, Manual, External Correction
CVBS support
dividing line support
Multi Language menu support
Function List WIFI support
Hotspot support
Capture Snapshot support
Record Video support
infrared laser support
Hot Tracking support
automatic shutdown support
battery capacity 3000mAh
Version Information View support
restore the default support
Equipment Timing support
OSD support
probabilistic dating support
Storage Memory
32G
PIP support
APP support
Battery Operating Time Up to 9 hours continuous running (with Wi-Fi hotspot function off)
Weight 420g
Dimension 215*55(mm)
